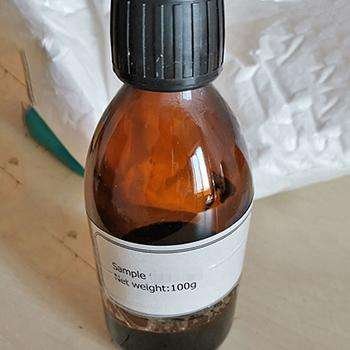

1H-Imidazole polymer with 2-(chloromethyl)oxirane and morpholine CAS 109882-76-0
Chemical Name: 1H-Imidazole polymer with 2-(chloromethyl)oxirane and morpholine
CAS No.: 109882-76-0
Molecular Fomula: C10H18ClN3O2
Molecular weight: 247.72
Appearance: Reddish brown liquid
Assay: ≥40.0%
Table of Contents
- Product Overview
- Technical Specifications & Comparative Analysis
- Industrial Applications
- Operational Guidelines
- Client Case Studies
- Contact for Technical Consultation
1H-Imidazole Polymer with 2-(Chloromethyl)Oxirane and Morpholine (CAS 109882-76-0)
Chemical Profile
| Parameter | Specification |
|---|---|
| CAS Number | 109882-76-0 |
| Molecular Formula | (C₃H₅ClO·C₄H₈N₂·C₄H₈NO₂)x |
| Appearance | Yellow to amber viscous liquid |
| Solubility | Miscible with polar solvents |
| Density (25°C) | 1.12-1.18 g/cm³ |
| Viscosity (25°C) | 800-1,200 mPa·s |
| Reactivity pH | 8.5-10.2 |
Technical Specifications & Comparative Analysis
Performance Benchmarking
| Property | Our Product | Conventional Imidazoles | Amine Catalysts |
|---|---|---|---|
| Cure Speed (min) | 12-18 | 25-40 | 30-45 |
| Thermal Stability (°C) | 220-250 | 180-200 | 150-180 |
| VOC Content | <50 ppm | 200-300 ppm | 500-800 ppm |
| Storage Stability | 24 months | 12 months | 6 months |
Industrial Applications
Core Functional Applications
- Epoxy Curing Systems: Dual-function catalyst/stabilizer for aerospace composites
- Electronic Encapsulants: Low-stress curing for semiconductor packaging
- Adhesive Formulations: Rapid-setting structural adhesives with >35 MPa shear strength
- Coating Accelerators: UV-resistant coatings with 85%+ gloss retention
Specialized Applications
- Medical device potting compounds (ISO 10993 certified)
- Wind turbine blade resin systems
- Automotive underhood components
Operational Guidelines
Recommended Formulation Parameters
| Application | Dosage (phr) | Processing Temp | Demold Time |
|---|---|---|---|
| Structural Adhesives | 0.8-1.2 | 80-100°C | 15-25 min |
| Composite Laminates | 1.5-2.0 | 120-140°C | 8-12 min |
| Coatings | 0.5-0.8 | RT-60°C | 40-60 min |
Client Case Studies
Case Study 1: Automotive Electronics Manufacturer
- Challenge: Delamination in ECU potting compounds at 125°C continuous operation
- Solution: 1.2 phr additive in epoxy-silicone hybrid system
- Outcome: 300% improvement in thermal cycling performance (-40°C to 150°C)
Case Study 2: Aerospace Composite Supplier
- Challenge: 6-hour demold time for carbon fiber reinforced parts
- Solution: 1.8 phr additive in BMI resin system
- Outcome: 65% reduction in cure cycle with 10% weight savings
Contact for Technical Consultation
Technical Support: info@vivalr.comEngineering Hotline: (86) 15866781826
Request formulation assistance or material safety data sheets:
- Custom curing profiles for your resin system
- Regulatory compliance documentation
- Sample quantities available for testing
